- Place of Origin: xiangyang
- Brand Name: Xiangyang WuErWu Pump Industry Co., Ltd.
- Model Number: CHJ
Capacity:12.5-450 m 3/h
Head:10~200m
Outlet diameter: 50~300mm
Temperature: ≤300℃
Inlet and outlet diameter: DN32-250mm
Pressure grade: PN6.3Mpa
Solid content: ≤20%, H2S,Cl-≤80000PPM
Application: locking circulation pumps and washing tower circulation pumps for Texaco device, slag pool circulation pumps and drainage booster pumps for Royal Dutch Shell.
Material: Chromium alloy, nickel steel, stainless steel, duplex stainless steel, hastalloy,

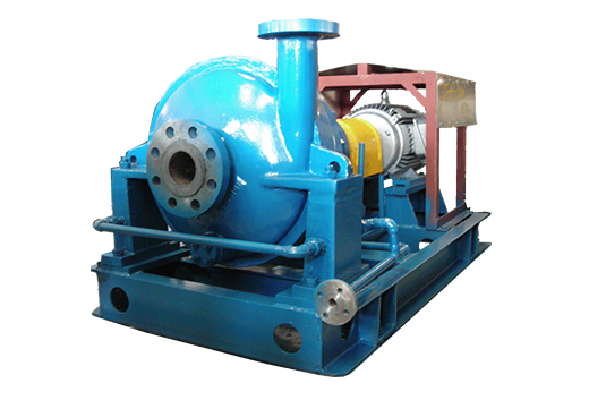

CHJ series pump is a kind of resisting high pressure and temperature, and anticorrosion and wearable pumps which is the special slurry pump used in coal chemical industry, according with the API-610 design criterion. With the quick development of coal chemical industry in China, people put great concern on performance, reliability, life and maintainability of high pressure, abrasion-proof centrifugal pumps, which are used in TEXACO and SHELL process. The lockhopper circulating pump and tower scrubber circulating pump are used in TEXACO process, and the slag bath circulating pump and dewatered booster pump are used in SHELL process. Integrated with much experience in researching and developing slurry pump for many years, our company developed the new type CHJ series high pressure, abrasion-proof centrifugal pumps which is the same with high opening pressure, high temperature and abrasive medium. Also, the series pumps is used in high pressure and temperature, corrosion and wearable working position of transporting mine slurry, refinery and petrochemical industries and so on.
- Place of Origin: xiangyang
- Brand Name: Xiangyang WuErWu Pump Industry Co., Ltd.
- Model Number: CHJ
Flow rate Q: 12.5~450m3/h
Head H: 10~200m
Outlet diameter: 50~300mm
Temperature: -20~300℃
Pressure Level: PN6.3MPa
Application: High temperature corrosive liquid containing abrasive particles
Material: Austenitic stainless steel, duplex stainless steel, selected according to the characteristics of the
